How to Adjust Jeep Jk Headlights

Properly adjusted Jeep JK headlights are crucial for safe night driving and preventing glare for other motorists. This guide provides a detailed, DIY-friendly process using simple tools like a screwdriver and a flat wall. You’ll learn to locate the adjustment screws, understand the correct beam pattern, and troubleshoot common issues like uneven lighting after a lift kit installation. Regular checks, especially after modifications, ensure your headlights perform their best and keep you compliant with road regulations.

Key Takeaways

• Safety First: Correctly aimed headlights dramatically improve your ability to see at night and prevent blinding oncoming drivers, which is a legal requirement in most areas.
• Essential Tools: All you need is a Phillips-head screwdriver, a level surface, a blank wall or garage door, and some masking tape to mark your reference points.
• Two-Axis Adjustment: Jeep JK headlights have separate vertical (up/down) and horizontal (left/right) adjustment screws, typically located behind the headlight assembly.
• Lift Kits Change Everything: Installing a lift kit will almost always alter your headlight aim, necessitating a readjustment. See our guide on how to tell how much lift your Jeep has and adjust accordingly.
• LED vs. Halogen: The adjustment process is similar, but LED units often have different heat management and may require a system reset after physical adjustment, similar to resetting your Jeep after a battery change.
• Pattern is Key: The goal is a distinct, flat cutoff line with a slight upward slope on the right side (for left-hand drive countries) to illuminate road signs without glare.

Why Proper Headlight Aim Matters for Your Jeep JK

Let’s be honest: driving your Jeep JK at night should be an adventure, not a guessing game. If your headlights are pointing at the clouds or straight into the eyes of every driver you meet, that adventure quickly becomes dangerous and frustrating. Properly adjusted headlights are your first and most important line of defense against nighttime hazards. They ensure you can see deer, rocks, or that sudden pothole in plenty of time. More importantly, correctly aimed lights prevent you from becoming a hazard yourself by blinding oncoming traffic. This isn’t just about comfort; it’s a legal responsibility. Most states have strict regulations about headlight aim, and failing can result in a ticket or, worse, a collision. For a vehicle like the JK, which often sees modifications, keeping the headlights dialed in is a non-negotiable part of maintenance.

The Real-World Impact of Bad Aim

Think about it: headlights that are too high will illuminate the sky instead of the road, wasting precious light and making you miss obstacles directly in front of you. They’ll also cause intense glare for drivers coming toward you, who might temporarily be blinded. Headlights aimed too low, meanwhile, create a “tunnel vision” effect, cutting your effective sight distance down to a dangerously short range. They can also cause excessive wear on your own eyes as you strain to see ahead. If you’ve recently added a lift kit, bigger tires, or even swapped to a new bumper, your headlight alignment has almost certainly changed. Ignoring this is like driving with severely compromised vision.

Gathering Your Tools and Finding a Perfect Location

The beauty of adjusting your Jeep JK headlights is that it requires almost no specialized equipment. This is a true DIY task. Before you touch a screw, you need to find the right spot to do the job. The ideal location is a dark, flat area with a large, plain, vertical surface to project your beams onto. A garage door works perfectly. A blank, light-colored wall in your driveway at night is another great option. The surface should be about 25 feet away from where you’ll park your Jeep. Avoid surfaces with windows, textures, or decorations, as these can distort your view of the beam pattern. You’ll also want to ensure your JK is on level ground, with tires properly inflated and the suspension unloaded (no heavy cargo in the back).

The Simple Toolkit

Your toolkit for this job fits in your pocket. You’ll need:

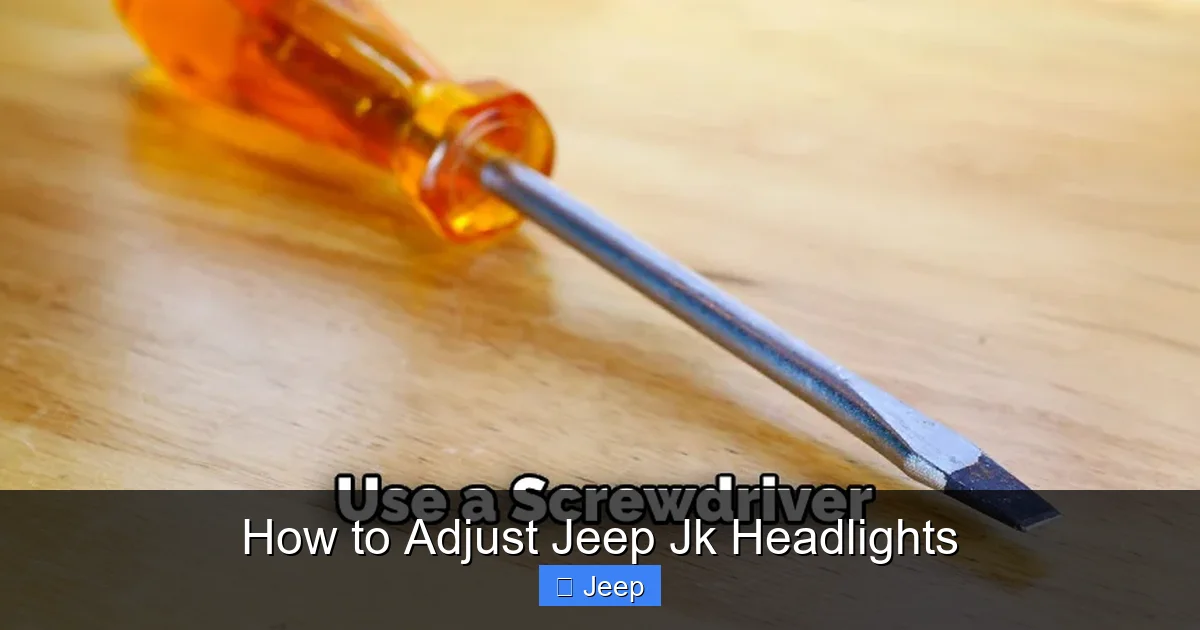

• A Phillips-head screwdriver: This is the primary tool for turning the adjustment screws on most JK models. Some aftermarket headlights may require a Torx bit, so check yours first.
• Masking tape or painter’s tape: You’ll use this to mark reference points on the wall and on your headlight housing itself.
• A measuring tape: To ensure your Jeep is parked the correct distance from the wall and to find the centerline of your vehicle.
• A marker: A pencil or chalk works fine for making small marks.
• Optional but helpful: A friend to operate the lights from inside the vehicle while you’re outside adjusting.

Locating the Adjustment Screws on Your Jeep JK

Now for the detective work. Pop the hood of your JK. You’ll find the headlight adjustment screws accessible from the back of the headlight assembly. For both the driver and passenger side, you should see two threaded screws with a plastic or rubber cap over them. One screw controls the vertical (up/down) aim, and the other controls the horizontal (left/right) aim. On most JKs, the vertical adjustment screw is on the top or inside corner of the headlight housing, while the horizontal screw is on the outer side. They are often labeled with small arrows or the letters “V” and “H” on the plastic cap. Don’t confuse these with the screws that hold the entire headlight assembly to the fender—those are for removal, not aim. If you have aftermarket LED headlights for your JK, the location might be slightly different, but the principle is the same: two screws for two axes of movement. Gently pry off the plastic caps with your screwdriver to expose the screw heads.

A Quick Pro Tip Before You Start

Before you make any adjustments, it’s a smart idea to take a photo or make a small mark with a paint pen on the headlight housing and the adjacent fender or grille. This gives you a reference point to return to if you over-adjust or simply want to go back to the factory setting. Also, ensure your headlights are clean. Dirt and grime on the lens can make it seem like your aim is off when the problem is just a dirty cover. A quick wash with automotive soap and water can save you a lot of headache.

The Step-by-Step Adjustment Process

With your Jeep parked 25 feet from the wall and your tools ready, it’s time for the main event. Start with both headlights turned on to their low-beam setting. Never attempt this adjustment with high beams on; the pattern is completely different and will give you a false result. Have your helper sit in the driver’s seat to operate the light switch. Your first job is to mark the wall.

Marking Your Wall: The Reference Line

Using your measuring tape, find the exact vertical center of your Jeep’s front end. The easiest way is to measure from the center of the front grille or the driver’s side headlight to the wall and replicate that distance on the wall. Make a small, precise vertical line with your tape. This is your vehicle centerline. Now, with both low beams on, look at the pattern on the wall. You’ll see two distinct beams. The goal is to get the *brightest part* of each beam (the cutoff) to hit specific points relative to your centerline. For left-hand drive vehicles like those in the US and Canada, the right-side headlight (passenger) should have its cutoff line aimed slightly *upward* to the right. This helps illuminate road signs and curves without dazzling oncoming drivers. The driver’s side beam should be almost perfectly horizontal, or just a hair lower than the passenger side.

Making the Adjustments: Vertical First, Then Horizontal

Start with the driver’s side headlight. Locate the vertical adjustment screw. Turning it **clockwise** will typically raise the beam, and **counter-clockwise** will lower it. Make small, quarter-turn adjustments. Have your helper turn the lights on and off so you can see the effect on the wall. Your target is to get the top edge of the driver’s side beam’s cutoff to hit just at or slightly below the height of the centerline you marked. A common rule of thumb is that the cutoff should be about 2-3 inches *below* the height of the headlight itself when measured at the wall 25 feet away. Once the vertical is set, move to the horizontal screw. Adjust this so the center of the beam’s hotspot is aligned with your vehicle’s centerline. The beam should be straight ahead, not veering to the left or right. Repeat the entire process for the passenger side. For the passenger light, after setting the vertical height (ideally the same or very slightly higher than the driver’s side), adjust the horizontal screw so the cutoff line angles *upward* to the right. The pattern should look like a gentle ramp on the right side.

Troubleshooting and Common Issues

Sometimes, things don’t go perfectly on the first try. Here’s how to diagnose the most common problems. If your beam pattern is wildly uneven, with one side much higher than the other, you likely have one adjustment screw that’s been turned too far. Go back and re-check both vertical screws. If the light seems to have a “hot spot” in the middle and very dim edges, this can indicate a faulty bulb or a misaligned reflector inside the housing—common with older halogen units. For LED conversions, an uneven pattern might point to a poor installation where the bulb isn’t seated correctly in the housing.

What If I Have a Lift Kit?

This is the most frequent culprit for “sudden” headlight misalignment. Adding a lift kit changes the angle of the headlight housing relative to the ground. Even a 2-inch lift can aim your lights several degrees upward. The solution is the same adjustment process described above, but you’ll likely need to turn the vertical adjustment screw significantly more (often several full turns) to bring the beams back down to the correct level. Always recheck your aim after installing any suspension modification. If you’re unsure about your lift height, figuring out your exact lift size can help you anticipate how much the aim will shift.

Dealing with Flickering or Dim Lights After Adjustment

If you notice your new LED headlights flickering or are significantly dimmer than expected after you’ve finished the mechanical adjustment, the issue is likely electrical, not mechanical. Modern Jeeps use a CANbus system that can confuse aftermarket LEDs, thinking a bulb is out. This often triggers a warning light or causes the LEDs to pulse. The fix is usually a simple capacitor or resistor module (often included with the LED kit) wired into the headlight circuit. In some cases, you may need to perform a reset of the vehicle’s computer system, much like the process for resetting your JK after a battery disconnect. Consult your LED headlight’s installation manual for specific CANbus troubleshooting steps.

LED vs. Halogen: Are the Adjustments Different?

The fundamental mechanical process is identical for both halogen and LED headlights on the JK. You’re still turning screws to pivot the housing. However, there are subtle differences in behavior and maintenance. Halogen bulbs produce a lot of heat, which can warp the plastic housing over many years, subtly changing the aim. This is why older JKs often need more frequent checks. LED modules, being solid-state, don’t suffer from this heat deformation, but they are more precise in their beam pattern. A poorly seated LED bulb will create a very obvious and messy scatter pattern on the wall, making alignment easier to spot but more critical to get perfect. Furthermore, as mentioned, some LED systems may require a brief electronic reset after physical adjustment to recalibrate their internal sensors or power management. Always refer to your specific headlight’s instructions.

Maintenance and When to Re-Check Your Aim

Consider headlight adjustment a regular maintenance item, not a “set it and forget it” task. The general recommendation is to check your headlight aim at least once a year. You should absolutely re-check and re-adjust after any of these events:

• Installation of a lift kit or lowering kit.
• Replacement of tires with a significantly different overall diameter.
• Any work done on the front suspension or frame.
• Replacement of a headlight assembly or bulb.
• After an accident or even a hard impact (like hitting a deep pothole).
• If you notice a change in your nighttime visibility or other drivers flashing their lights at you.

It’s also a good practice to check the aim before a long road trip or a season of serious off-roading. A quick 10-minute check with a wall can save you from a dangerous situation or an unwanted ticket.

Conclusion: See Clearly, Drive Safely

Adjusting your Jeep JK headlights is one of the most satisfying and impactful DIY jobs you can do. It takes minimal time and tools but delivers an immediate and massive improvement in safety and driving comfort. You’re not just aiming lights; you’re taking control of your nighttime experience behind the wheel. The process reinforces a core Jeep owner ethos: understanding and maintaining your vehicle. By following these steps—finding a dark wall, marking your centerline, making small, deliberate screw adjustments, and verifying the proper beam pattern—you ensure your JK is always ready to illuminate the trail or the highway ahead. Remember, perfect headlight aim is a blend of science and a touch of art. Don’t get discouraged if it takes a couple of passes to get it just right. The result is crystal-clear visibility and the peace of mind that you’re not endangering anyone else on the road. Now, go enjoy those perfectly aimed lights on your next adventure.

Frequently Asked Questions

How often should I check my Jeep JK headlight aim?

You should inspect your headlight alignment at least once a year as part of routine maintenance. However, you must re-check and adjust them immediately after installing a lift kit, changing tire size, replacing a headlight assembly, or if you notice a change in visibility or other drivers flashing their lights at you.

What specific tools are required for this adjustment?

For a standard Jeep JK, you only need a Phillips-head screwdriver to turn the adjustment screws. A measuring tape, masking tape, and a marker are used to create reference points on a wall. A dark, flat wall or garage door located about 25 feet from your parking spot is the only other “tool” you need.

Is adjusting Jeep JK headlights a difficult DIY job?

No, it is considered a very easy DIY task, perfect for beginners. The process is straightforward: park, mark a wall, and turn two small screws per headlight. The main challenge is patience and making small, incremental adjustments while checking the beam pattern on the wall.

Do LED headlights require a different adjustment technique than halogen?

The mechanical adjustment process using the screws is identical for both LED and halogen units. However, LED systems are more sensitive to precise alignment and may have a sharper cutoff line. After adjusting, some LED setups might require a brief electronic reset to clear CANbus warnings, which is not typically needed for halogens.

Will installing a lift kit affect my headlight adjustment?

Absolutely. A lift kit changes the angle of the headlight housing relative to the road, almost always causing the beams to point too high. You will need to readjust the vertical aim screw on each headlight, typically turning it several times to bring the beams back down to the proper, legal level.

What is the correct beam pattern I should aim for on the wall?

For left-hand drive vehicles like the JK, the goal is a sharp, horizontal cutoff line. The driver’s side (left) beam should have a cutoff that is level or just slightly lower than the vehicle’s centerline. The passenger side (right) beam should have the same cutoff level but with a gentle upward slope to the right. This pattern illuminates road signs without causing glare for oncoming drivers.
