Harley Sportster Xr1200x Review

The Harley Sportster XR1200X is a high-performance variant of the iconic Sportster line, blending track-inspired handling with Harley-Davidson’s signature V-twin rumble. Designed for aggressive street riding, it delivers sharp suspension, responsive brakes, and a lightweight chassis that sets it apart from traditional cruisers.

Key Takeaways

• Track-Inspired Performance: The XR1200X features upgraded suspension, Brembo brakes, and a lighter frame for superior handling and cornering.
• 1200cc Evolution Engine: Delivers 90+ horsepower with instant throttle response and that classic Harley growl.
• Aggressive Riding Position: Clip-on handlebars and rear-set footpegs put you in a sporty, forward-leaning stance.
• Lightweight Chassis: Weighing just 540 lbs wet, it’s one of the lightest Harleys ever made, enhancing agility.
• Distinctive Styling: Flat black finish, minimal bodywork, and number plate-style taillight give it a no-nonsense, race-bike look.
• Not for Beginners: Best suited for experienced riders due to its stiff suspension and high footpegs.
• Aftermarket Friendly: Popular platform for customization, from exhausts to suspension upgrades.

Introduction: The Rebel in Harley’s Lineup

When you think of Harley-Davidson, images of long, low cruisers with chrome gleaming under the sun probably come to mind. But in 2009, Harley did something unexpected—they released a bike that looked like it belonged on a racetrack, not a boulevard. That bike was the Sportster XR1200X, a bold departure from tradition that aimed to attract younger, performance-hungry riders.

The XR1200X wasn’t just a cosmetic upgrade. It was a full-on performance machine built on the Sportster platform but infused with DNA from Harley’s XR750 flat-track race bike. With its flat black paint, minimal bodywork, and aggressive stance, it screamed “race me.” But it wasn’t just about looks. Underneath that stripped-down exterior was a bike engineered for speed, agility, and pure riding excitement.

This review dives deep into what makes the XR1200X a standout in Harley’s lineup. Whether you’re a seasoned rider looking for something different or a Harley fan curious about this rare beast, we’ll cover everything—from engine performance and handling to comfort, style, and real-world usability. Buckle up, because the XR1200X isn’t your grandpa’s Harley.

Engine and Performance: The Heart of the Beast

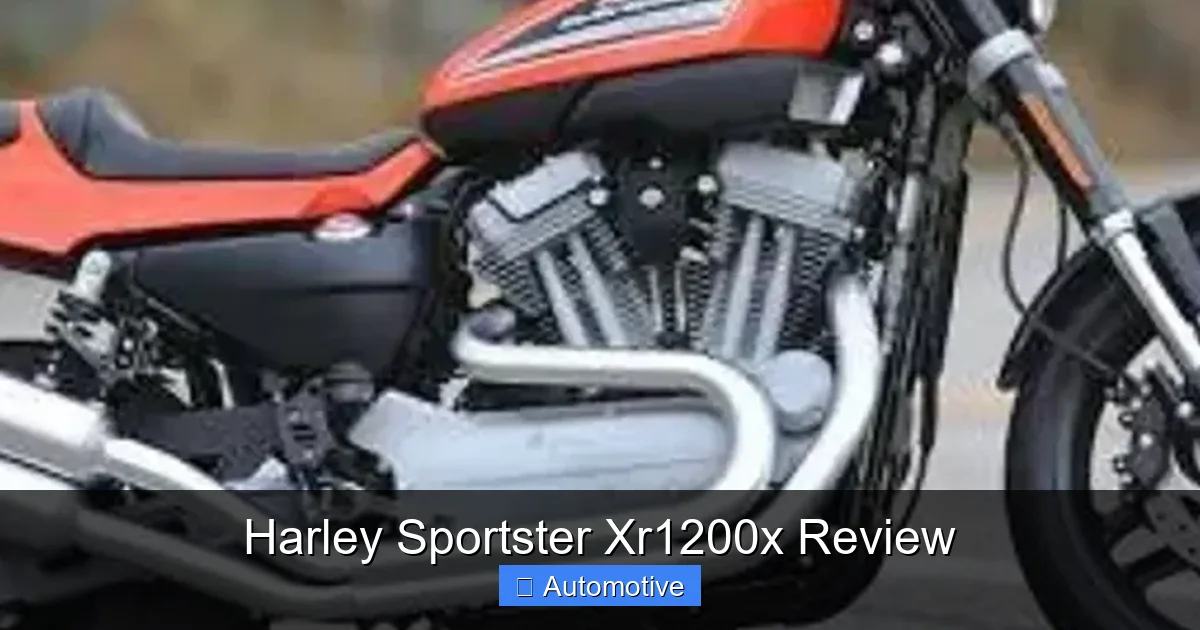

At the core of the XR1200X is Harley’s proven 1200cc Evolution V-twin engine. This isn’t the same lump you’ll find in a standard Sportster—it’s tuned for higher performance and quicker response. With a compression ratio of 10:1 and a revised cam profile, the XR1200X pumps out around 90 horsepower and 80 lb-ft of torque. That might not sound like much compared to modern superbikes, but remember: this is a Harley. The power delivery is raw, immediate, and deeply satisfying.

The engine revs quicker than other Sportsters, thanks to lighter internal components and improved airflow. Throttle response is crisp, especially in the mid-range, making city riding and quick overtakes a breeze. The V-twin’s characteristic lope is still there, but it’s sharper, more urgent. You’ll feel every pulse through the frame, especially when you crack the throttle open on an open road.

One of the XR1200X’s biggest strengths is its torque curve. Unlike high-strung sportbikes that need to be revved to redline, this Harley pulls hard from as low as 2,500 RPM. That makes it incredibly usable in everyday riding. Whether you’re accelerating out of a corner or merging onto a highway, there’s always power on tap. And when you do wind it out past 5,000 RPM, the engine sings with a mechanical snarl that’s pure adrenaline.

Transmission and Clutch Feel

The five-speed transmission is smooth and precise, with well-spaced gears that suit the engine’s power band. Shifts are positive, and the clutch has a firm but manageable pull. It’s not as light as some Japanese bikes, but it’s not overly heavy either—just enough to remind you you’re riding a Harley. Downshifts are smooth with a quick blip of the throttle, and the engine braking is strong, helping you slow down without relying too much on the brakes.

One thing to note: the XR1200X doesn’t have a slipper clutch, which means aggressive downshifts can cause the rear wheel to chatter slightly under hard braking. It’s not a dealbreaker, but it’s something experienced riders will notice. That said, the bike’s overall balance and traction make it easy to manage, even during spirited riding.

Exhaust Note and Sound Character

Let’s talk about the sound—because the XR1200X doesn’t just look fast, it sounds fast. The stock exhaust is a dual system with a deep, throaty growl that turns heads wherever you go. It’s not obnoxiously loud, but it’s definitely not quiet. At idle, it rumbles with a low-frequency pulse that vibrates through your bones. Open the throttle, and it erupts into a bark that’s equal parts muscle car and race bike.

Many owners swap the stock pipes for aftermarket exhausts, like Vance & Hines or Cobra, to enhance the sound and performance. A good slip-on system can add a few horsepower and give the bike an even more aggressive tone. Just be mindful of local noise laws—some areas have strict decibel limits, and a loud pipe can get you pulled over fast.

Handling and Suspension: Built for the Twisties

This is where the XR1200X truly shines. Unlike traditional Harleys, which are built for straight-line cruising, the XR1200X was designed to corner. It features a completely revised chassis with a steeper steering head angle (27 degrees vs. 32 on a standard Sportster) and a shorter wheelbase. The result? A bike that turns in quickly and holds a line with confidence.

The suspension setup is another major upgrade. Up front, you get 43mm inverted forks with adjustable preload, compression, and rebound damping. In the rear, there’s a fully adjustable piggyback reservoir shock. This isn’t just for show—the suspension is tuned for sporty riding, with a firm but compliant feel that soaks up bumps without wallowing in corners.

On twisty mountain roads, the XR1200X feels alive. It leans easily, tracks true, and gives you real feedback through the handlebars. The tires—Bridgestone Battlax BT020s—offer excellent grip and warm up quickly, even in cooler temperatures. You can push hard into corners and still feel planted, which is rare for a Harley.

Brake Performance

Stopping power comes from dual 320mm floating rotors up front, clamped by four-piston Brembo calipers. This is serious hardware—the same kind you’d find on a Ducati or BMW sportbike. The brakes are strong, linear, and offer excellent modulation. You can brake deep into corners with confidence, and the system resists fade even after repeated hard stops.

The rear brake is a single 260mm rotor with a two-piston caliper. It’s not as powerful as the front, but it’s more than adequate for everyday use. Combined with the bike’s low center of gravity and balanced weight distribution, the XR1200X stops as well as it goes.

One tip: if you plan on track days or aggressive canyon riding, consider upgrading to stainless steel brake lines and high-performance pads. They’ll improve feel and reduce lever travel, giving you even more control.

Weight and Agility

At 540 pounds wet, the XR1200X is one of the lightest Harleys ever built. That might not sound light compared to a 350-pound sportbike, but in the Harley world, it’s a featherweight. The low weight, combined with the short wheelbase and sporty geometry, makes the bike incredibly nimble.

You can flick it from side to side with minimal effort, and it responds instantly to steering inputs. Low-speed maneuvering is surprisingly easy, thanks to the bike’s compact size and manageable weight. U-turns and parking lot navigation are no sweat, even for riders with shorter inseams.

The only downside? The high footpegs can make slow-speed turns a bit tricky. Your boots will scrape if you lean too far at low speeds, so you’ll need to be mindful of your lean angle in parking lots or tight spaces.

Riding Position and Ergonomics: Sporty, Not Comfortable

Let’s be honest—the XR1200X isn’t built for long-distance comfort. This is a performance bike, and the riding position reflects that. You sit in a forward-leaning, aggressive stance with clip-on handlebars and rear-set footpegs. Your arms are stretched out, your back is slightly arched, and your knees are bent at a sharp angle.

For short rides or spirited weekend blasts, it’s perfect. You feel connected to the bike, and the position puts you in the ideal posture for cornering and braking. But on a 200-mile highway trip? Your wrists, shoulders, and lower back will let you know it’s time to stop.

The seat is firm and narrow, designed to keep you planted during hard riding. It’s not plush, but it’s supportive. The padding is just enough to prevent numbness on moderate rides, but don’t expect luxury here. If you plan on longer trips, consider adding a gel seat pad or upgrading to a more comfortable aftermarket seat.

Wind Protection

There is none. The XR1200X has no fairing, no windscreen, and minimal bodywork. At highway speeds, you’ll feel every bit of windblast hitting your chest and helmet. It’s not unbearable, but it’s definitely fatiguing on long rides. This bike is best enjoyed on back roads, not interstates.

If you do need to cover distance, a small flyscreen or handlebar-mounted wind deflector can help reduce wind fatigue. Some riders also wear a neck brace or high-collared jacket to minimize buffeting.

Footpeg and Handlebar Placement

The rear-set footpegs are positioned high and back, putting your feet nearly level with your hips. This gives you great ground clearance and allows you to hang off in corners, but it also means your legs are bent more than on a standard cruiser. Taller riders might find the position cramped, especially if they have long legs.

The clip-on handlebars are low and narrow, promoting an aggressive riding posture. They offer excellent leverage for steering, but they can strain your wrists on long rides. If comfort is a priority, consider swapping to a slightly higher bar or adding bar-end weights to reduce vibration.

Styling and Aesthetics: A Streetfighter with Attitude

The XR1200X looks like it rolled straight out of a flat-track race. The flat black paint scheme—matte black tank, fenders, and frame—gives it a stealthy, no-nonsense appearance. There’s minimal chrome, just a few accents on the engine and exhaust. The overall vibe is industrial, aggressive, and undeniably cool.

The bodywork is stripped down to the essentials. No bulky fenders, no unnecessary panels—just a sleek fuel tank, a minimal tail section, and a number plate-style taillight that looks like it belongs on a dirt bike. The front end features a small headlight and a tiny fender, emphasizing the bike’s lightweight design.

One of the most distinctive features is the “XR” decal on the tank, reminiscent of the legendary XR750. It’s a subtle nod to Harley’s racing heritage and a badge of honor for fans of the brand’s competitive side.

Color Options and Customization

The XR1200X was only available in a few colors during its production run (2009–2013), with Vivid Black and Mirror Chrome being the most common. The flat black finish is especially popular among riders who want a stealthy, aggressive look.

Because of its minimalist design, the XR1200X is a favorite among custom builders. It’s easy to modify—swap the exhaust, add a solo seat, install a different handlebar, or even go full café racer. The aftermarket support is strong, with plenty of parts available to personalize your ride.

Some popular mods include:
– High-mount exhaust systems for a cleaner look
– Clip-on or clubman handlebars for a more aggressive stance
– Rearsets with adjustable pegs for better ergonomics
– LED lighting upgrades for modern styling and better visibility

Lighting and Visibility

The stock lighting is functional but basic. The headlight is a halogen unit that provides decent illumination, but it’s not as bright as modern LED systems. The taillight and turn signals are compact and stylish, but they could be more visible in traffic.

Many owners upgrade to LED bulbs or full LED conversion kits to improve brightness and reduce power draw. It’s a simple mod that makes a big difference, especially at night or in bad weather.

Technology and Features: Simple by Design

Don’t expect a digital dashboard or ride modes on the XR1200X. This bike is analog through and through. The instrument cluster is a simple analog speedometer with a small digital display for the odometer and trip meter. There’s no tachometer, no fuel gauge, and no gear indicator.

It’s barebones, but that’s part of the charm. The XR1200X is about the ride, not the gadgets. You focus on the road, the engine, and the sensation of speed—not screens and menus.

Fuel Capacity and Range

The fuel tank holds 3.3 gallons, which is typical for a Sportster. With the 1200cc engine, you can expect around 40–45 mpg in mixed riding. That gives you a real-world range of about 130–150 miles per tank. It’s not great for long trips, but it’s fine for daily commuting or weekend rides.

The low fuel light comes on with about a gallon left, so you’ll want to fill up before it kicks in. There’s no fuel gauge, so you’ll need to rely on the trip meter or just keep track of your mileage.

Storage and Practicality

There’s no storage to speak of. No saddlebags, no trunk, not even a small glove box. If you need to carry anything, you’ll have to use a tank bag, tail bag, or backpack. It’s not the most practical bike for errands or commuting, but that’s not what it’s built for.

The XR1200X is a toy, a weekend warrior, a bike for pure enjoyment. If you need utility, look elsewhere. But if you want a machine that makes every ride an event, this is it.

Ownership Experience: Pros, Cons, and Real-World Use

Owning an XR1200X is a unique experience. It’s not for everyone, but for the right rider, it’s pure magic. Here’s what you need to know.

Pros

– Exceptional handling for a Harley
– Raw, responsive engine with great torque
– Lightweight and agile
– Head-turning styling
– Strong aftermarket support
– Great for canyon carving and track days

Cons

– Uncomfortable for long rides
– No wind protection
– Minimal storage
– Basic instrumentation
– High footpegs can be tricky at low speeds
– Not ideal for beginners

Maintenance and Reliability

The XR1200X is built on the same platform as other Sportsters, so reliability is generally good. The Evolution engine is proven and durable, with proper maintenance. Regular oil changes, valve adjustments, and chain care will keep it running strong for years.

One thing to watch: the carbureted version (2009–2010) can be finicky in cold weather or at altitude. The fuel-injected models (2011–2013) are more reliable and easier to live with. If you’re buying used, aim for a 2011 or later model.

Resale Value and Availability

The XR1200X wasn’t produced in large numbers, so it’s a relatively rare bike. That helps hold its value. Well-maintained examples often sell for close to their original MSRP, especially in good condition with low mileage.

Because it’s a niche model, you might have to search a bit to find one. Check Harley forums, specialty dealers, and online marketplaces. Be prepared to travel—but it’s worth it.

Conclusion: A Harley for the Enthusiast

The Harley Sportster XR1200X is a rebel with a cause. It challenges everything you thought you knew about Harley-Davidson motorcycles. It’s not a cruiser. It’s not a tourer. It’s a performance machine built for riders who want speed, style, and soul.

With its track-inspired handling, punchy 1200cc engine, and aggressive styling, the XR1200X delivers an experience that’s uniquely Harley—yet completely different. It’s not the most comfortable, practical, or high-tech bike on the road. But it’s one of the most exciting.

If you’re an experienced rider looking for a bike that’s fun, fast, and full of character, the XR1200X deserves a serious look. It’s not for everyone, but for the right person, it’s the perfect ride.

So, is the XR1200X the best Harley ever made? Maybe not. But it might just be the most interesting.

Frequently Asked Questions

Is the Harley Sportster XR1200X good for beginners?

No, the XR1200X is not recommended for beginners. Its aggressive riding position, stiff suspension, and high footpegs make it challenging for new riders. It’s best suited for those with experience on motorcycles.

How much horsepower does the XR1200X have?

The XR1200X produces around 90 horsepower and 80 lb-ft of torque from its 1200cc Evolution V-twin engine. While not the most powerful bike, it delivers strong mid-range torque for quick acceleration.

Can you tour on a Harley XR1200X?

Touring is possible but not ideal. The lack of wind protection, minimal storage, and uncomfortable riding position make long-distance travel tiring. It’s better suited for weekend rides and backroad adventures.

What year did Harley stop making the XR1200X?

Harley-Davidson discontinued the XR1200X after the 2013 model year. It was only in production from 2009 to 2013, making it a relatively rare model today.

Is the XR1200X fuel injected?

The 2009 and 2010 models were carbureted, while the 2011–2013 models featured fuel injection. Fuel-injected versions are more reliable and easier to maintain, especially in varying weather conditions.

Can you modify the XR1200X easily?

Yes, the XR1200X is highly customizable. Its minimalist design and strong aftermarket support make it a favorite for mods like exhausts, suspension upgrades, and handlebar swaps.
