Introduction: Feeling Cool Behind the Wheel

Imagine you’re driving on a hot summer day. The sun is blazing, the roads are steaming, and the heat is unbearable. You roll up the windows and turn on the AC. Instantly, a wave of cool air flows through the cabin, turning your car into a calm, comfortable oasis. Ever wondered how this magic happens? That’s the power of the car air conditioning system components and their functions working together in harmony.

A vehicle’s AC system does more than just cool the air. It also reduces humidity, making the environment inside your car feel fresher and more comfortable. Whether you’re stuck in traffic or cruising down the highway, your AC system ensures a pleasant ride. But behind this comfort lies a complex system based on thermodynamic principles like the Reverse Brayton or Rankine cycle.

In this article, we’ll take a deep dive into the car air conditioning system components and their functions, demystify how they work, and explain everything in simple, friendly language—just like chatting with a car-savvy friend.

The Purpose of a Car’s AC System

The Purpose of a Car’s AC System
Before we jump into the components, let’s understand why your car needs an AC system in the first place. The system is designed for two main reasons:
  • Cooling the air before it enters the cabin.

  • Removing moisture from that air, so it doesn’t feel sticky or heavy.

By doing these two things, the AC system keeps you comfortable, alert, and safe—especially during long drives or in extreme climates.

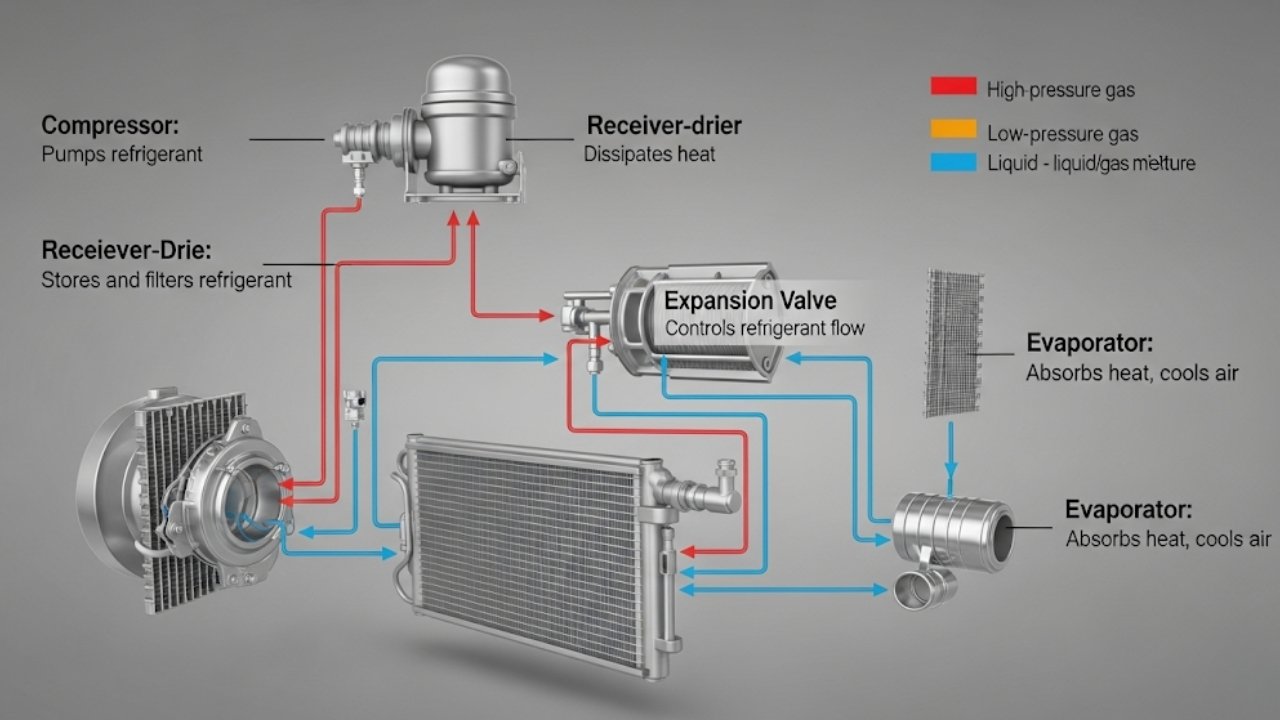

Overview of the Car AC System Design

The car air conditioning system components and their functions are built into three primary sub-systems:

  1. Refrigeration System – Cools and dries the air using refrigerant.

  2. Air Circulation and Distribution System – Moves the cooled air through the car.

  3. Control System – Adjusts the temperature and airflow according to your settings.

Let’s break these down and look at each component in detail.


1. Compressor – The Heart of the AC System

Think of the compressor as the “heart” of the entire system. Just as your heart pumps blood, the compressor pumps refrigerant through the AC system.

  • It compresses low-pressure gas from the evaporator and turns it into high-pressure, high-temperature gas.

  • This compressed gas then travels to the condenser.

  • The compressor is driven by the engine’s crankshaft using a belt.

See also  Fuel Line Disconnect Tool Harbour Freight

If the compressor fails, the whole AC system fails. That’s how crucial it is. The system literally starts and ends here.

Key Role:

  • Maintains the circulation of refrigerant.

  • Raises the pressure and temperature for the next stage.


2. Condenser – The AC’s Heat Releaser

After the refrigerant is compressed, it’s extremely hot. The condenser cools it down.

  • It looks like a mini radiator and sits in front of the car’s engine cooling radiator.

  • Hot refrigerant gas enters at the top.

  • Through forced convection from a fan or radiator airflow, the gas cools and condenses into a high-pressure liquid.

This cooling is essential. Without it, the refrigerant won’t be ready for the next phase in the cycle.

Key Role:

  • Removes heat from the refrigerant.

  • Changes gas into liquid under high pressure.


3. Receiver-Drier – The Moisture Filter

Next comes the receiver-drier, a safety guard that performs multiple functions:

  • Stores excess refrigerant and oil temporarily when they’re not in use.

  • Filters out debris and metal particles that may damage the system.

  • Contains desiccant, a drying agent that absorbs moisture from the refrigerant.

Moisture in the AC system can cause corrosion, freezing, and clogging. So, this component keeps things dry and clean.

Key Role:

  • Protects the compressor from moisture and debris.

  • Ensures refrigerant is in optimal condition before moving forward.


4. Expansion Valve – The Pressure Dropper

The refrigerant is still a high-pressure liquid at this stage. That’s where the expansion valve steps in.

  • It lowers the pressure of the refrigerant before it enters the evaporator.

  • As the pressure drops, the refrigerant becomes cold again, ready to absorb heat.

Think of it as turning a nozzle to reduce the flow pressure—only it’s more precise and automatic.

Key Role:

  • Drops the refrigerant pressure.

  • Prepares the refrigerant for maximum cooling efficiency.


5. Evaporator – The Cooling Core

Now we’re inside the cabin. The evaporator is located just behind your dashboard vents.

  • Cold, low-pressure refrigerant flows into the evaporator.

  • As warm air from the cabin passes over the evaporator fins, the refrigerant absorbs heat and evaporates into a gas.

  • This process cools the air, which is then blown into the cabin by a blower fan.

You feel that refreshing cold air thanks to this simple yet powerful exchange of energy.

Key Role:

  • Absorbs cabin heat.

  • Turns liquid refrigerant into gas, completing the cycle.


Quick Recap Table: Main Components and Functions

ComponentFunction
CompressorCompresses refrigerant gas and circulates it
CondenserCools high-pressure gas into a liquid
Receiver-DrierStores, filters, and dries the refrigerant
Expansion ValveReduces pressure before refrigerant enters the evaporator
EvaporatorAbsorbs cabin heat and cools the air

6. Refrigerant – The Cooling Medium

A system is only as good as its fuel. For your AC, that fuel is refrigerant.

  • It has a low boiling point, which allows it to evaporate easily and absorb heat.

  • It circulates through the system, constantly changing state from liquid to gas and back.

See also  Toyota Harrier Car Price in Bangladesh – A Complete Guide

Modern refrigerants like R-134a or R-1234yf are designed to be more eco-friendly and efficient.

Key Role:

  • Acts as the medium for heat exchange.

  • Must remain pure and sealed in the system.


7. Orifice Tube – An Alternative to Expansion Valve

Some cars use an orifice tube instead of an expansion valve.

  • It’s a fixed device that meters refrigerant flow.

  • Found mostly in GM and Ford vehicles.

  • It’s located between the condenser and the evaporator.

The orifice tube provides a constant flow restriction to create a pressure drop, enabling cooling just like an expansion valve.

Key Role:

  • Provides controlled flow for evaporator.

  • Filters out debris in some designs.


8. Accumulator – Liquid Catcher and Protector

Found in orifice tube systems, the accumulator ensures that no liquid refrigerant enters the compressor.

  • It’s attached to the evaporator outlet.

  • It stores extra refrigerant and removes moisture and debris, just like a receiver-drier.

Compressors are built to handle vapor, not liquid. So, the accumulator protects against accidental damage.

Key Role:

  • Stores excess refrigerant.

  • Prevents compressor damage by blocking liquids.


9. Pressure Regulating Devices – Keeping Temperatures in Check

Temperature control isn’t just about feel—it’s also about function.

  • These devices monitor and control pressure levels inside the evaporator.

  • They help avoid freezing or overcooling of the air.

By adjusting flow and pressure, they keep everything operating smoothly.

Key Role:

  • Maintains system efficiency.

  • Prevents overcooling and damage.


10. Control System – Your AC’s Brain

This is the interface you interact with: knobs, switches, digital panels.

  • It lets you change temperature, blower speed, and air direction.

  • Sends signals to valves, actuators, and sensors.

How the Car AC System Works: Step-by-Step Breakdown

Understanding the working process of the AC system helps you appreciate the importance of each component. Here’s a simple walkthrough that ties all the parts together:

  1. Evaporation Begins the Cycle
    Inside the car, the evaporator absorbs heat from the cabin air. As the warm air passes over the evaporator coil, the cold refrigerant inside absorbs the heat and evaporates into a low-pressure vapor. This is how your cabin cools down.

  2. Compressor Takes Over
    This warm vapor moves to the compressor, which compresses it into a high-pressure, high-temperature gas. Now, the refrigerant is ready to release its heat.

  3. Condensing the Heat
    The gas moves to the condenser, where it cools and turns back into a liquid. This happens because the air passing over the condenser (thanks to fans) removes the heat.

  4. Expansion and Cooling
    The high-pressure liquid passes through the expansion valve or orifice tube, which drops the pressure and temperature of the refrigerant.

  5. Cycle Repeats
    The cooled refrigerant returns to the evaporator, where it’s ready to absorb more heat. The process repeats continuously as long as your AC is running.

See also  What New Cars Are Available With Manual Transmission?

Each stage is connected. If one component fails, the cycle is disrupted, and your car’s AC may stop cooling properly.


Common Issues and Troubleshooting Tips

Every car owner should know how to spot early signs of AC trouble. Here are some typical issues related to car air conditioning system components and their functions:

SymptomLikely Cause
Warm air from ventsLow refrigerant, faulty compressor
Musty smellMold in the evaporator or filters
AC not turning onElectrical issues or control system fault
Clicking or buzzing soundCompressor clutch problem
Inconsistent coolingFailing expansion valve or low refrigerant

Pro Tip: If you notice any of the above, don’t ignore it. A small issue can quickly lead to expensive repairs if left unchecked.


Maintenance Tips for a Healthy AC System

Want your AC to last long and work well? Here are some friendly, practical tips:

  • Run your AC regularly – Even in winter. It keeps the system lubricated.

  • Change cabin air filters – Dirty filters block airflow and reduce cooling.

  • Check refrigerant levels – Low refrigerant makes your AC struggle.

  • Listen for odd sounds – Clicking or rattling can mean trouble.

  • Clean the condenser – Dirt buildup can prevent proper heat exchange.

  • Service yearly – A mechanic can inspect the full system, recharge refrigerant, and catch early issues.

Quick Reminder: Most AC problems stem from low refrigerant or lack of maintenance—not defective parts.


Real-World Analogy: Your Body and the AC System

Here’s a fun way to remember the car air conditioning system components and their functions:

  • Compressor = Heart (pumps the refrigerant)

  • Refrigerant = Blood (transports heat)

  • Condenser = Lungs (removes heat/CO2)

  • Expansion Valve = Veins (controls flow and pressure)

  • Evaporator = Skin (absorbs external temperature)

This system is almost like a body keeping your car “alive” with comfort. That’s how integrated and essential it is.


Frequently Asked Questions (FAQs)

1. What is the most important component of a car AC system?
The compressor is often considered the most vital because it starts and sustains the flow of refrigerant. Without it, nothing moves.

2. How often should I service my car’s AC?
Once a year is ideal. It keeps the system clean, efficient, and prevents small issues from becoming major.

3. What refrigerant does my car use?
Most modern vehicles use R-134a or R-1234yf. Always check your car’s manual or AC label.

4. Why does my AC blow warm air sometimes?
This can be due to low refrigerant, compressor failure, or a faulty expansion valve. Diagnosis is needed to pinpoint the issue.

5. Can I refill my car AC refrigerant myself?
Technically, yes—but it’s risky without proper knowledge. It’s safer and more reliable to have it done by a professional.

6. Is it safe to drive with a broken AC?
Yes, but it can be uncomfortable, especially in extreme temperatures. Also, if the problem is due to a refrigerant leak, it might be harming the environment.

7. Can a clogged cabin air filter affect AC performance?
Absolutely. It can block airflow and reduce cooling, even if the rest of the system is working fine.

8. What’s the difference between expansion valve and orifice tube systems?
Expansion valves adjust refrigerant flow based on temperature, while orifice tubes provide a fixed flow. Both serve the same purpose but in different ways.


Conclusion: More Than Just Cool Air

Understanding the car air conditioning system components and their functions gives you more than technical knowledge—it gives you control and confidence. Whether you’re facing a breakdown or just want better performance, knowing how your AC works is a big advantage.

So next time you feel that refreshing breeze in your car, you’ll know the science, the story, and the system behind it. It’s more than just comfort—it’s a quiet marvel of engineering making every ride a bit more bearable.
